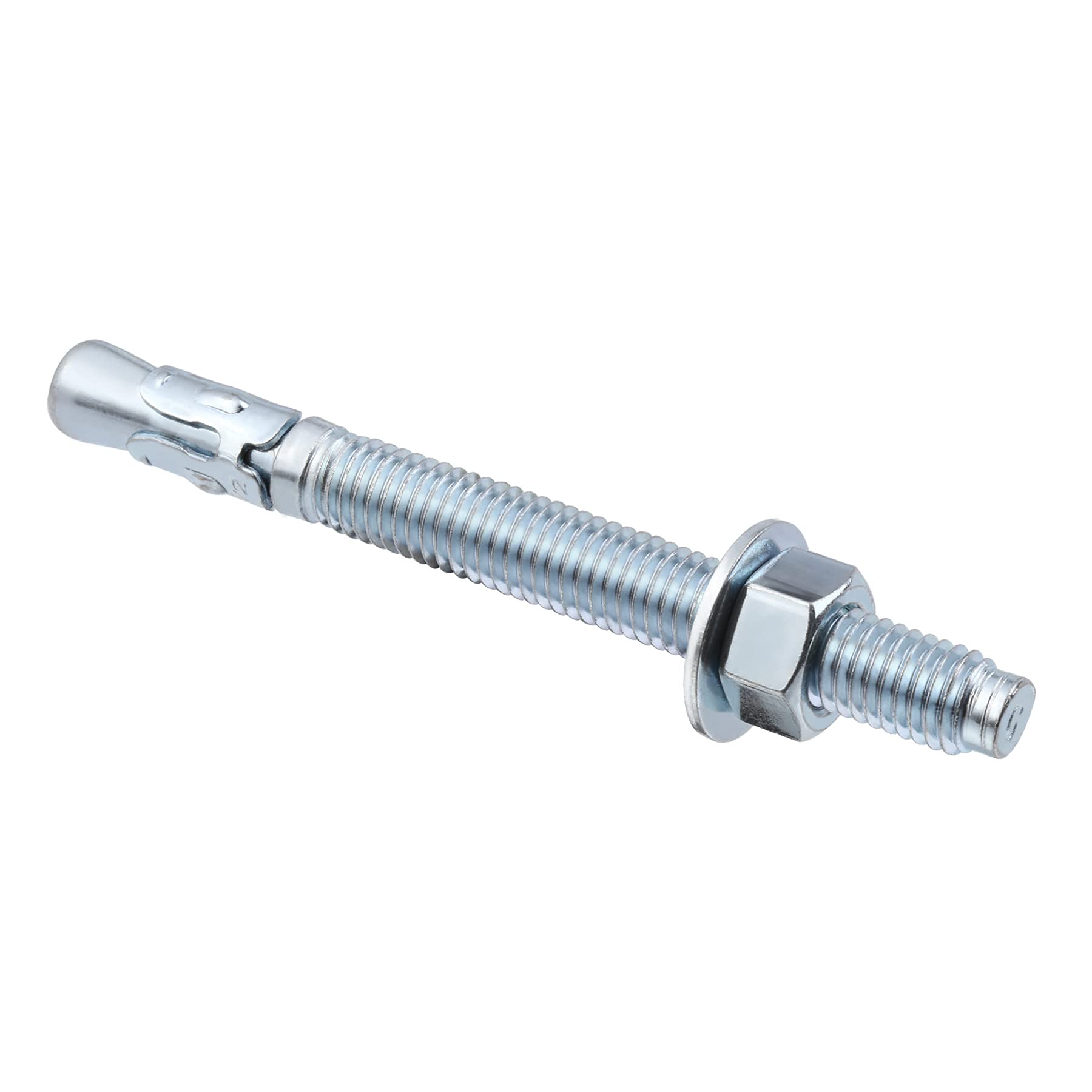

wedge anchors

Specification Highlights:

• Material Options:

  • Carbon steel (zinc-plated or hot-dip galvanized)

  • Stainless steel (SS304, SS316)

  • High-strength alloy steel

• Size Range:

  • Diameter: 6 mm to 24 mm (1/4" to 1")

  • Length: 50 mm to 300 mm (2" to 12") or custom as required

• Components:

  • Threaded anchor bolt

  • Expansion clip (permanently affixed)

  • Hex nut

  • Washer

• Thread Type:

  • Metric or imperial (UNC/UNF)

  • Partial threading to allow grip and clamping

• Coating / Finish:

  • Zinc plated

  • Hot-dip galvanized (for outdoor use)

  • Stainless steel – natural finish

• Installation Requirements:

  • Pre-drilled hole in solid concrete only

  • Hole diameter equals anchor diameter

  • Must be embedded to minimum depth for full strength

• Load Capacity:

  • High tensile and shear strength

  • Specific load ratings depend on size, embedment depth, and concrete strength

  • Typical load range: 500 kg to 5,000+ kg

• Standards Compliance:

  • ASTM E488, A307, A193

  • IS 1367

  • ICC-ES, ETA, ANSI (depending on region)

• Applications:

  • Fastening structural steel beams and base plates

  • Securing machinery, heavy equipment, and racking

  • Mounting safety barriers, handrails, and fences

  • Anchoring piping systems, HVAC units, and electrical panels

• Key Features:

  • Permanent and vibration-resistant anchorage

  • High pull-out and shear resistance

  • Fast and reliable installation in solid concrete

  • Not suitable for brick, block, or lightweight concrete

  • Available in corrosion-resistant grades for outdoor or marine use
