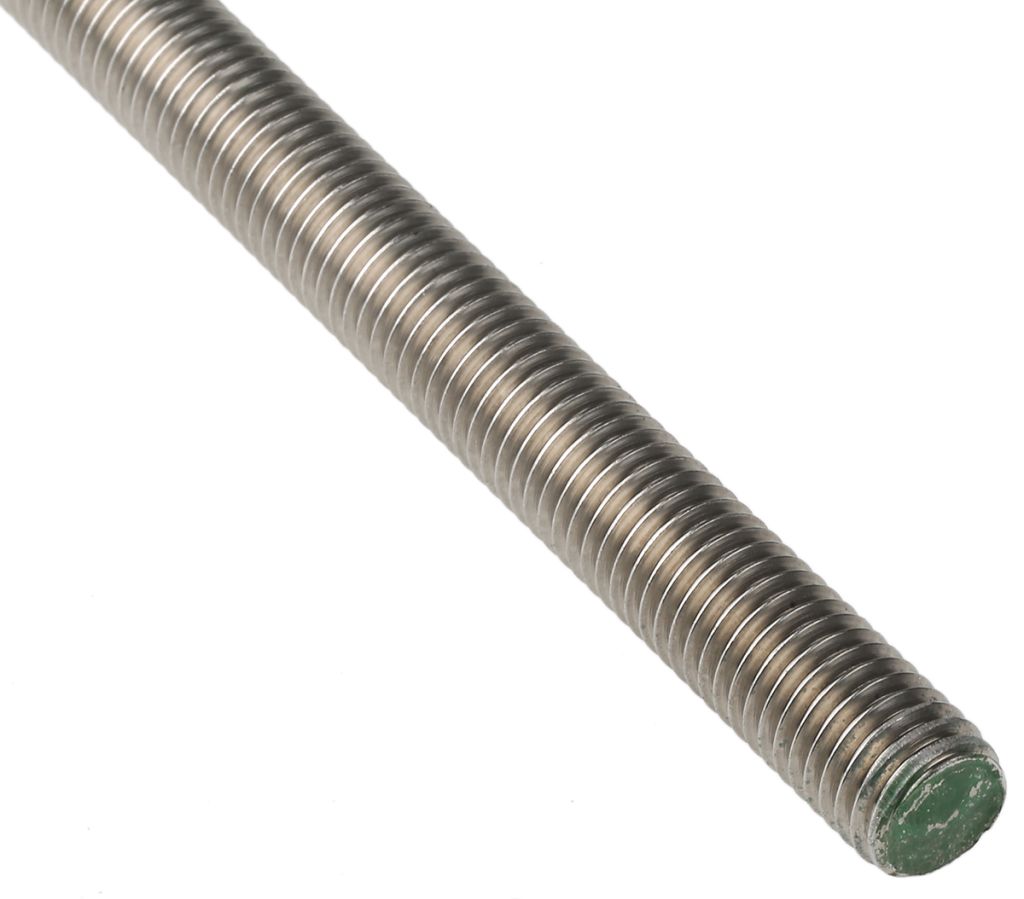

Treaded Rods

Specification Highlights:

• Material Options:

  • Mild steel

  • Carbon steel

  • Stainless steel (SS304, SS316, SS202)

  • Brass

  • Aluminum

  • High tensile alloy steel

  • Galvanized steel

  • Special alloys (Inconel, Monel, Duplex for corrosion/heat resistance)

• Thread Types:

  • Metric threads (M4 to M100)

  • Imperial threads (1/4" to 4")

  • UNC (Unified Coarse), UNF (Unified Fine), BSW, BSF

  • Right-hand or left-hand threading

  • Thread class: 6g, 6h, 2A/2B, etc.

• Length Range:

  • Standard lengths: 1 meter, 2 meters, 3 meters

  • Custom lengths available on request

  • Can be cut to required size

• Finish / Coating:

  • Plain / self-finish

  • Zinc plated (white/yellow/blue)

  • Hot-dip galvanized (HDG) for corrosion resistance

  • Black oxide

  • Teflon / PTFE coating

  • Chrome / Nickel plated

• Strength Grades:

  • 4.6, 5.8, 8.8, 10.9, 12.9 (ISO)

  • ASTM A193 Grade B7, B8, B16

  • ASTM A307, A325

  • Stainless grades: A2-70, A4-80

• Standards Compliance:

  • DIN 975 / DIN 976

  • ISO 898-1

  • ASTM A193, A307

  • IS 1367

  • ASME, BS, ANSI standards

• Applications:

  • Building and structural steel assemblies

  • Pipe supports and hangers

  • Electrical and HVAC installations

  • Machinery mounting

  • Foundation and anchor bolt systems

  • Suspended ceilings and cable trays

• Key Features:

  • Full-length threading allows versatile application

  • High tensile and shear strength

  • Easily cut and used with standard nuts and washers

  • Compatible with tensioning tools for precision fastening

  • Corrosion-resistant coatings for indoor and outdoor use
