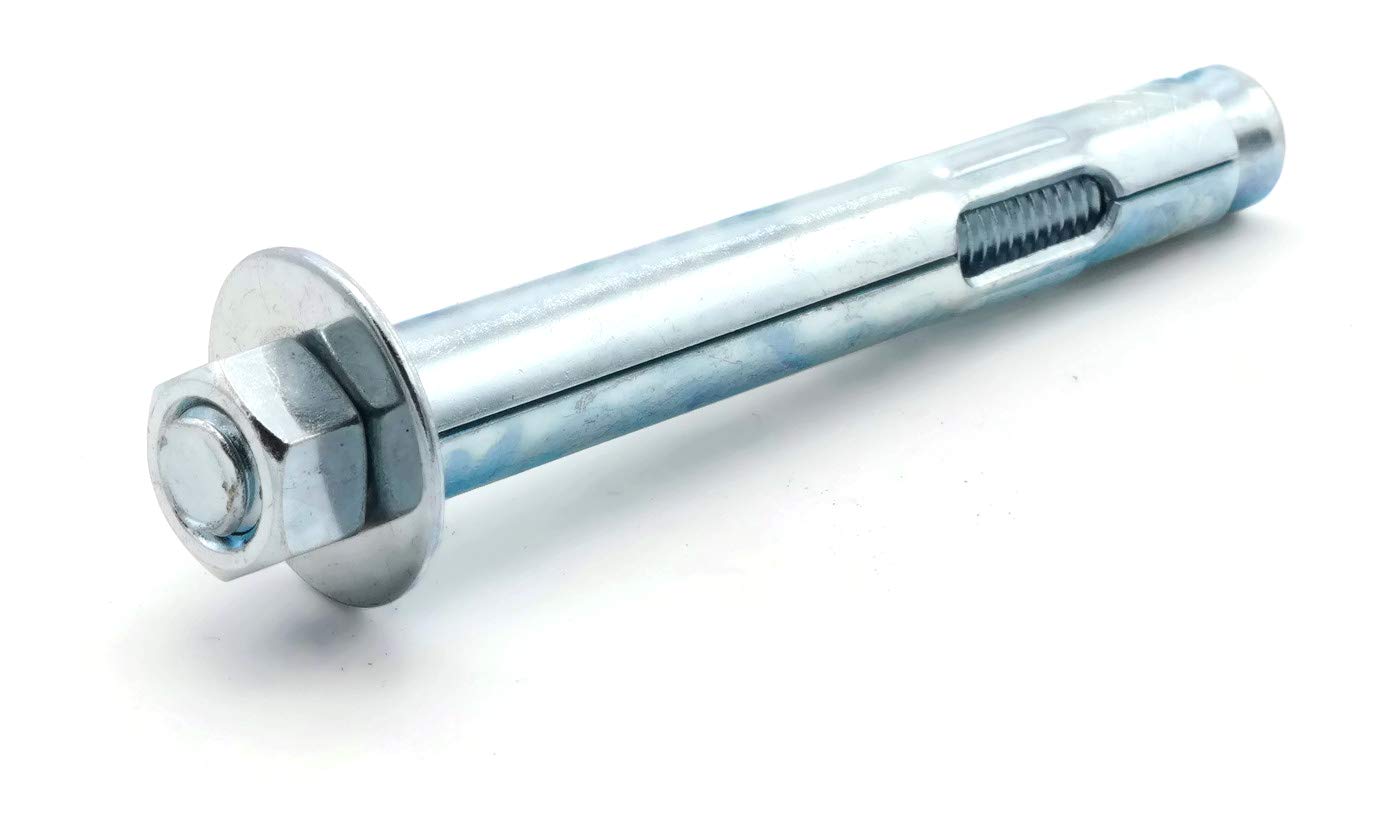

sleeve anchors

Specification Highlights:

• Material Options:

  • Carbon steel (zinc plated)

  • Stainless steel (SS304, SS316)

  • Galvanized steel

• Size Range:

  • Diameter: 6 mm to 20 mm (1/4" to 3/4")

  • Length: 40 mm to 200 mm (1.5" to 8") or custom sizes

• Head Types:

  • Hex head (most common)

  • Flat/countersunk head

  • Round head

  • Acorn nut (for decorative use)

• Thread Type:

  • Metric or UNC (imperial) thread

  • Partially threaded bolt

• Finish / Coating:

  • Zinc plated (standard for indoor use)

  • Hot-dip galvanized (for outdoor use)

  • Stainless steel (for corrosion resistance)

• Components:

  • Expansion sleeve

  • Threaded stud/bolt

  • Washer

  • Nut (hex or acorn)

• Installation Requirements:

  • Drill hole diameter = anchor diameter

  • Insert anchor and tighten nut to expand the sleeve

  • Works in concrete, brick, block (not recommended for drywall)

• Load Capacity:

  • Medium-duty anchoring solution

  • Load varies by size and substrate (typically 200 kg to 2000+ kg)

• Standards Compliance:

  • IS, DIN, BS, ASTM E488, A307

  • European Technical Approval (ETA) available for some grades

• Applications:

  • Mounting handrails, guardrails, and gates

  • Fixing signs, lights, brackets, and shelves

  • Securing machinery base plates and HVAC units

  • Anchoring electrical conduits and pipes

• Key Features:

  • Versatile and easy to install

  • Suitable for solid and hollow masonry

  • Provides strong grip through outward expansion

  • Can be removed or repositioned if needed

  • Available in corrosion-resistant finishes for indoor and outdoor use
